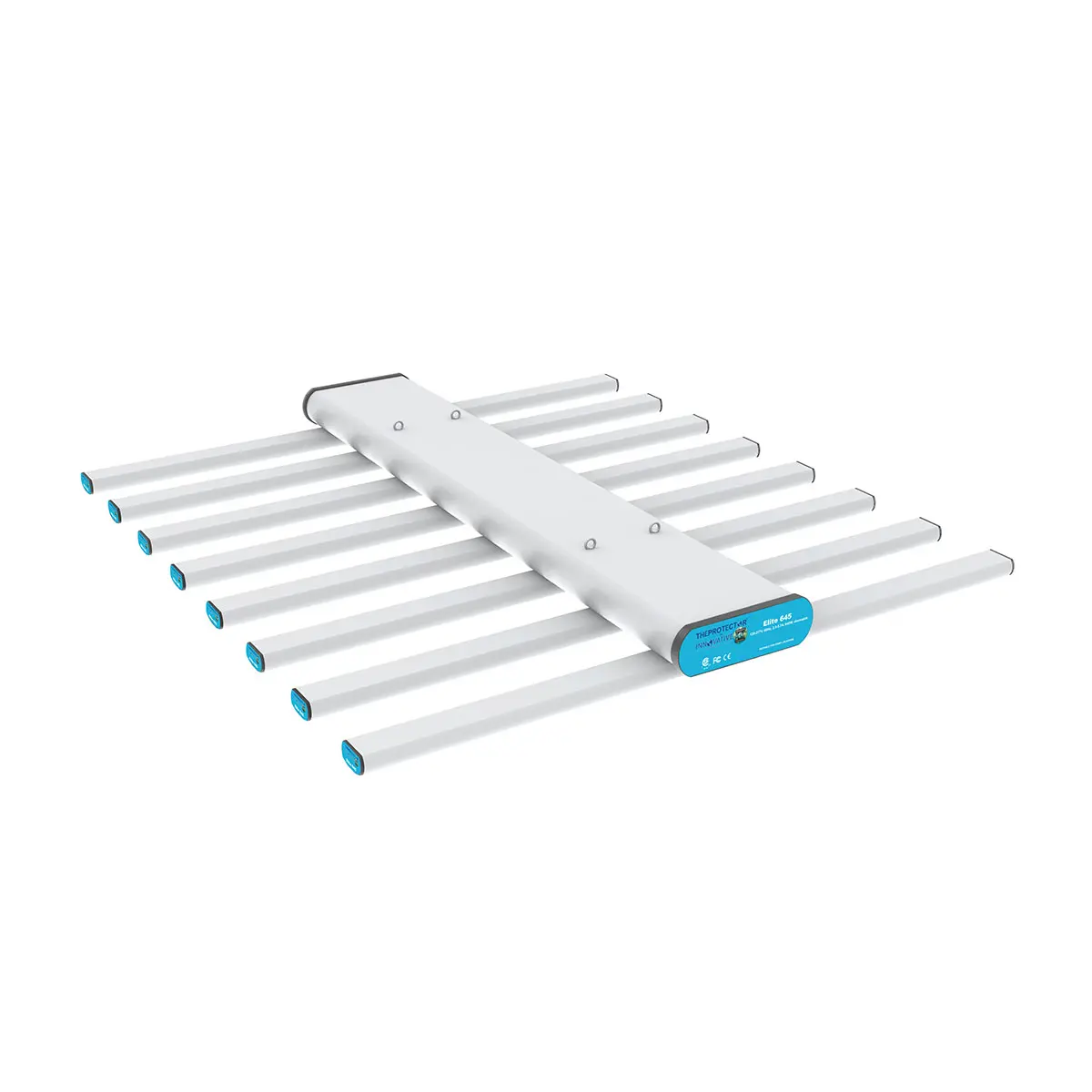

| 645W LED Light |
| FULL SPECTRUM |
- 380nm-780nm
- Improve active ingredients contents
|
| 1750umol-1 |
- Over 2.7umol/J at 645w
- Saving more energy while producing more
|
| Wet/Damp location IP65 |
- Make planting easier
- Easily sterilized
|
| >97% LIGHT TRANSMISSION |
- With silicone conformal coat
|
| SUITABLE FOR GMP & GACP FACILITY |
|
|
| SPECIFICATIONS: |
|
| INPUT VOLTAGE +-10% |
(100V-277V) |
| INPUT WATTAGE +-7% |
645w |
| INPUT CURRENT AT 100% |
5.4A @ 2120V, 2.7A@240V, 2.3A@277V |
| POWER FACTOR |
>0.97 |
| OPERATING TEMPERATURE |
14*F-104*F / -10*C-40*C |
| FREQUENCY |
50Hz |
| CERTIFICATION STANDARDS |
DLC&CSA listed, compliance with FCC/UL/CE/Rohs |
PPF 1750 umol/s
| EXTERNAL DIM |
Daisy Chain Digital signal (RS485): 0-100%,
Analog signal (0-10Vdc): 35-100%
|
| EFFICACY |
2.7 umol/J |
| BTU |
2200 BTU/h |
| DRIVER BRAND |
Moso |
| LIGHT SOURCE |
Osram 660nm + Seoul white 4000K |
| MATERIAL |
6063 Aluminum |
| THERMAL MANAGEMENT |
Passive Cooling
|
| MOUNTING HEIGHT |
>_6" (15.2cm) Above Plant Canopy |
| PRODUCT WEIGHT |
13.7 |
| FIXTURE DIMENSIONS L*W*H |
L49.29xW43.34xH4.33 in. / L1252xW1101xH110mm |
| IP RATING |
IP65, UL 8800- suitable for wet/damp location |
| LIFESPAN |
L90:>54,000hrs. |
| COVERAGE AREA |
Flower: 5'*5', Veg 7'*7' |
| WARRANTY |
5 YEARS |
| |
ADAPTER IN BODY, EASY ASSEMBLY |
| |
|
|
|
Materials:
• 6063 Aluminum
|
|
Package:
1 pcs / pack
|
Individual Size:
L49.80xW15.55xH8.85 in./ L1265xW395xH225 mm
|
Individual Weight:
36.59 Lbs. / 16.6 Kgs.
|
| Product Details: |
Directions of Use: |
| Company Name: |
Innovative Tool and Design Inc. |
|
| Product Description: |
ELITE 645W LED LIGHT |
| Part Number: |
INNO-ELITE645 |
| UPC: |
850031592308 |
| Quality Certification: |
CE & RoHS Standards |
| Color: |
Silver and blue |
| Units per box: |
1 |
| Package Size: |
in. |
| Weight: |
Lbs. |
|
