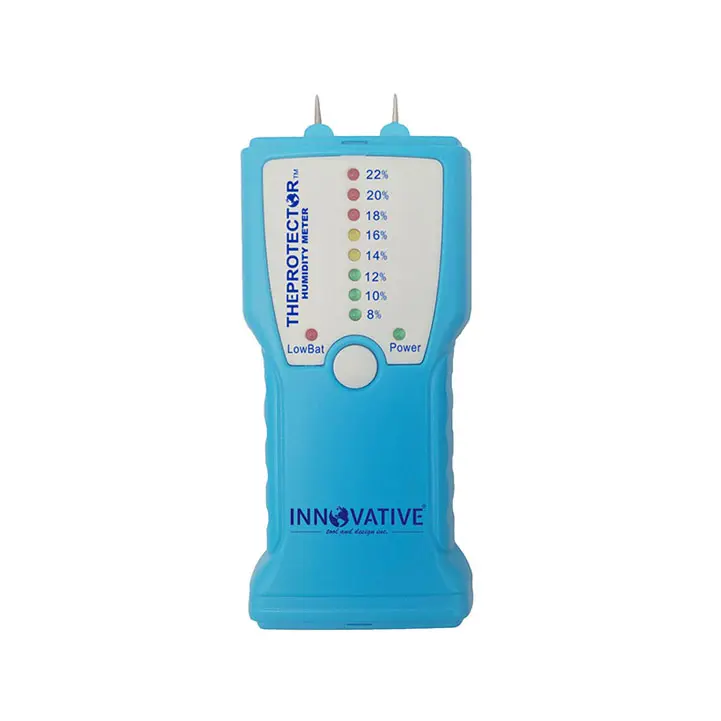

Moisture & Humidity Meter

 MOISTURE METER

Measure  the amount of water vapor in gases, most often in air, in buildings, pipelines, or as part of industrial or agricultural processes to ensure the optimal amount of moisture is present.

Application differ from agricultural, pharmaceutical, meteorology wide range of commercial and industrial processes.

High humidity also makes temperatures feel warmer, affecting comfort levels and straining HVAC systems. Low humidity, on the other side, will dry things out and can lead to a static electricity build up.

MOISTURE READINGS:

•Tests Moisture Content from 8 to 22%

•Low Battery and Power indicators

•Protective Cover fits on end of instrument

•Quick Response

•Accuracy: +-2%

•Operating Temperature: 32*F-122*F /  0*C-50*C

•Operating Humidity: <90% R.H.

Green:

8%-12%    indicates AIR DRY CONDITIONS

Yellow:

14%-16%   indicates INCREASED MOISTURE.

Red:

18%-22%    indicates EXCESS MOISTURE.

 OPERATION:

1-Remove the protection Cap from the unit.

2-Press the center button to turn the unit on.

   The LED's screen will illuminate.

3-Press the two pins firmly against surface to

   be measured.

4-LED's screen will illuminate to correspondent

   color to show moisture content % of the material

   being measured.

INCLUDED IN THE BOX:

 BATTERY INSTALLATION:

1. Requires one standard 9V battery ( not included).
2. Battery compartment is located on the bottom of the meter
3. Lift clip to access the battery compartment.
4. Connect a new 9V battery
5. Replace the cover and securely snap in place.  The meter is now ready to use.

WARNINGS:

-REPLACE THE BATTERY WHEN THE: "Low-Battery LED" GLOWS OR IF THE UNIT DOESN'T TURN ON.

-REPLACE THE PIN PROTECTOR CAP AFTER USE.

-SHARP POINTS. KEEP  AWAY FROM CHILDREN

Moisture Meter
