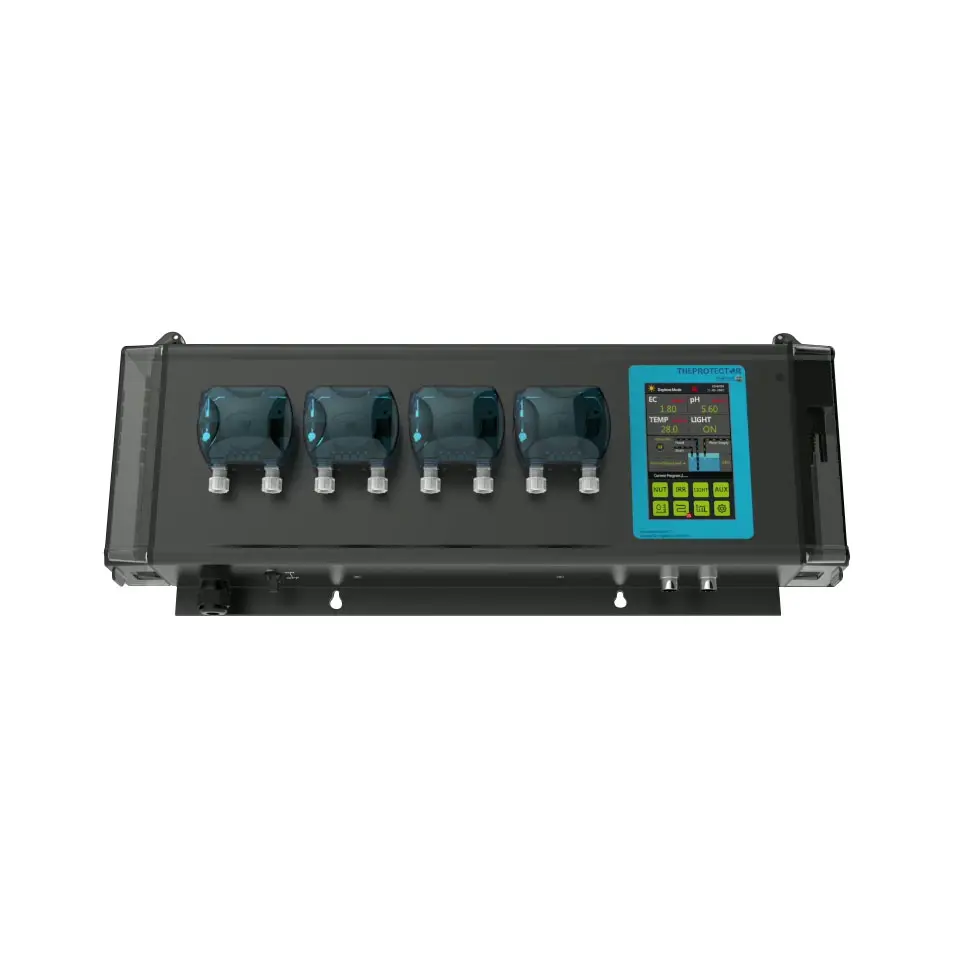

| Innovative AQUA C-1 |
|
• Can control the grow lights, including timing control and circulation control.
- The user can customize their own nutrition formulas according to the growing scheduled, and the system will be running the formulas base on the scheduled automatically.
- Innovative AQUA C-1 has 5 set of 24V AC outputs and 4 sets of 220V outputs, can be used for mixing, recirculation and extra pumps.
|
|
| Power |
120VAC+_15VAC, 60Hz, 1A |
| DC24 |
6 sets outlets: AC24V/0.3A, 6 sets Dry contact |
| Other outlet (RJ12) |
RJ12X3, 3 SETS RS485
Outlet: DC24V, 1.0A
|
| Water level sensor |
1 set RS485
Outlet: DC24V, 1.0A
|
| Outlet |
RJ45 |
| Size |
11.41x8.85x3.74 in
290X225X95mm (L*W*H)
|
| Cable lenght |
=2m/ 6.5ft. |
| Net Weight |
6.61 Lbs / 3.0 Kg |
| Accessories |
EC Sensor (0-10) 1 set
PH Sensor (0-14) 1 set
|
|
INCLUDED IN THE BOX:
-AQUA C-1 UNIT CONTROLLER
-4 PUMPS
|
OPTIONAL:
CAN BE ADDED 2 OR 4 MORE PUMPS
UP TO 8 TOTAL.
|
THEPROTECTOR
|
| AC STATION Parameters: |
|
LIGHT SENSOR parameters: |
|
| INPUT |
USA outlet AC110V / 60Hz |
INPUT |
DC24V |
| OUTPUT |
USA outlet AC110V / 60Hz / MAX10 |
OUTPUT |
0-10V (DC) |
| MAX POWER |
<1100W |
SIGNAL |
RJ12 sets |
| SIGNAL |
RJ12 sets |
SIGNAL LIGHT |
Green LED |
| SIGNAL LIGHT |
Green LED |
MAX |
10 pcs. |
| OPERATION |
Touch KEY |
MAX OUTPUT |
1 set |
| MAX OUTPUT |
10 pcs. |
CONTROLLER SIG |
RS485 (Modbus-RTU) |
| CONTROLLER SIG |
RS485 ( Modbus-RTU) |
|
|
| PRESSURE SENSOR parameters: |
|
PERISTALTIC PUMP parameters: |
|
| INPUT |
DC24V |
INPUT |
DC12V |
| OUTPUT |
0-10V (DC) |
OUTPUT |
10-470 ml/min |
| SIGNAL |
RJ12 sets |
MAX |
8 pcs. |
| SIGNAL LIGHT |
Green LED |
MAX OUTPUT |
1 set |
| MAX |
10 pcs. |
CONTROLLER SIG |
RS486 (Modbus-RTU) |
| MAX OUTPUT |
1 set |
|
|
| CONTROLLER SIG |
RS485 (Modbus-RTU) |
|
|
|
| |
Package:
1 pcs / pack
|
Individual Size:
11.41x 8.85x3.74 in. (LxWxH)
|
Individual Weight:
6.61 lbs.
|
| Product Details: |
|
| Company Name: |
Innovative Tool and Design Inc. |
|
| Product Description: |
Nutrients and Irrigation Controller |
| Part Number: |
INNO-AQUAC-1 |
| UPC: |
850031592353 |
| Color: |
White and blue |
| Package Size: |
32.08x12.20x8.07 in |
| Weight: |
7 Lbs. |
|
